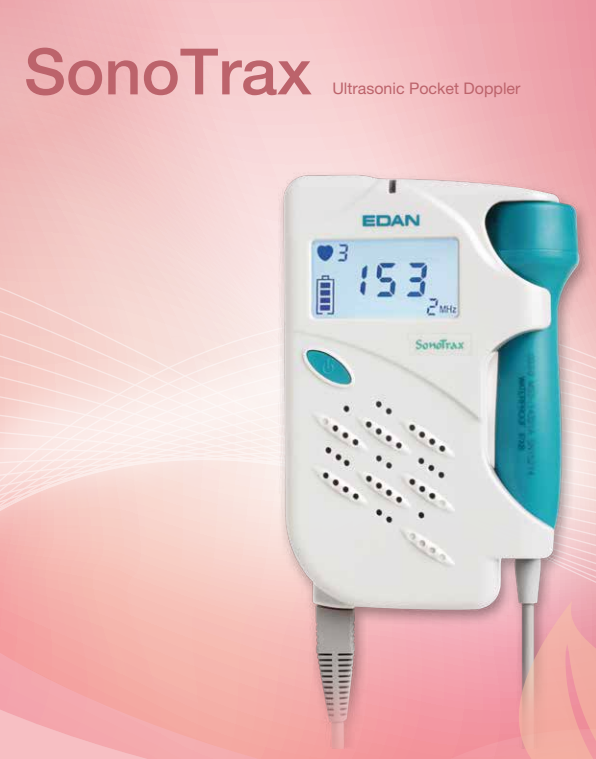

SonoTrax Series UItrasonic Pocket Dopplers’ superior sensitivity, high-fidelity sound, recording option and optional rechargeable battery ensure the doppler family to meet the routine examination requirements of obstetricians and midwives.

Categories: ,

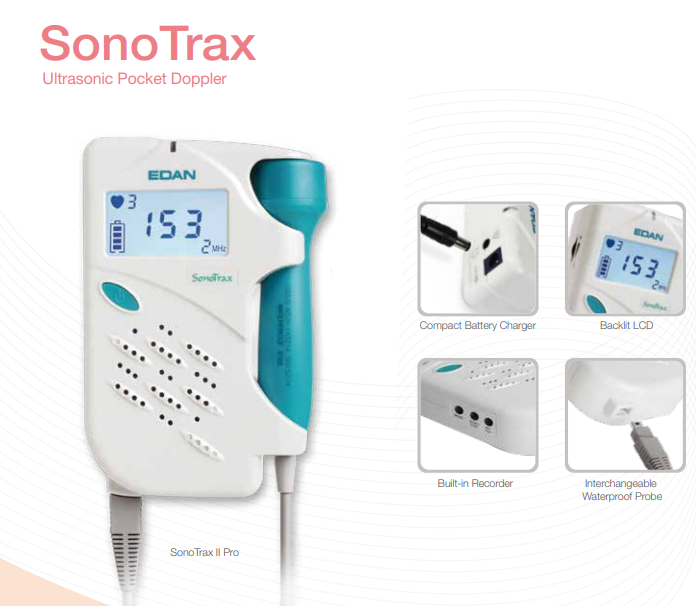

User-Friendly Design

Compact design
45 x 25 mm LCD display
Accurate fetal heart detection with high-fidelity sound

Interchangeable Waterproof Probe

2 MHz probe with deep penetration

4/5/8 MHz probe for blood flow detection
3 MHz probe detects fetal heart beat as early as 9 weeks

Record & Play

In case that some tests are carried out without a doctor beside,

the nurses might need to report some abnormal FHR status after the tests.

EDAN provides a record & play feature which will help with such situation.

Doctors will be able to check on the FHR data changes as well as the FHR sound just like he/she was there by the tests.

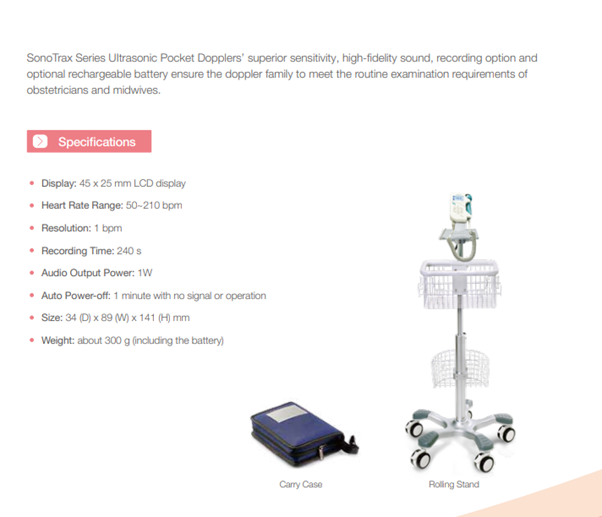

Specifications

  • Display: 45 x 25 mm LCD display
  • Heart Rate Range: 50~210 bpm
  • Resolution: 1 bpm
  • Recording Time: 240 s
  • Audio Output Power: 1W
  • Auto Power-off: 1 minute with no signal or operation
  • Size: 34 (D) x 89 (W) x 141 (H) mm
  • Weight: about 300 g (including the battery)
