NF5
NF5
High Flow Heated Respiratory Humidifier
Simple and practical
- Ultra-Large touch screen: NF5 is equipped with a 4.3-inch touch screen, which allows easy and quick operation by touch and navigation knob.
- Electronic Air-O2 mixer system: easy to set up flow rate and O2 concentration.
- Intuitive UI design: large font, easy for caregiver to operate and observe.
Safe and comfortable
- Multi-position temp monitoring: NF5 is equipped with 3 temp sensors, which enable real-time temp monitoring, synchronized closed-loop feedback, joint high temp alarm, smart water level management and over-temp protection function to ensure safer heating.
- High-performance nasal cannula: ergonomic design, soft and comfortable, free of constriction.
- Ultra-quiet design: The ultra-quiet turbine significantly reduces noise, provides a quiet O2 therapy environment, reduces irritability.
Efficient and precise
One-touch O₂ flush
Rapidly increase the O₂ concentration, increase the patient's O₂ reserve, and facilitate sputum suction, bronchoscopy, intubation and other nursing care.
High-precision control of oxygen concentration
Adopt high-precision electronic air-oxygen mixing system and precise oxygen concentration monitoring module to realize precise regulation and real-time monitoring of oxygen concentration.
Smart temp and humidity control
Through intelligent temperature and humidity monitoring and closed-loop feedback mechanism, NF5 provides patients with accurate high-flow oxygen therapy close to the human core body temperature (37℃) and 100% relative humidity (44mg/L), optimizes mucus and cilia function.
Wide range of application
The 2-80L/min wide range flow control can effectively flush the dead space, avoid CO2 retention, meet the treatment requirement of both infants and adults, clinically suitable for patients at different ages.
Therapeutic range for infants and children:
2~30L/min
Therapeutic range for adults:
10~80L/min
Intra-hospital transport
- High performance turbine, no need for compressed air supply
- Integrated battery for transportation

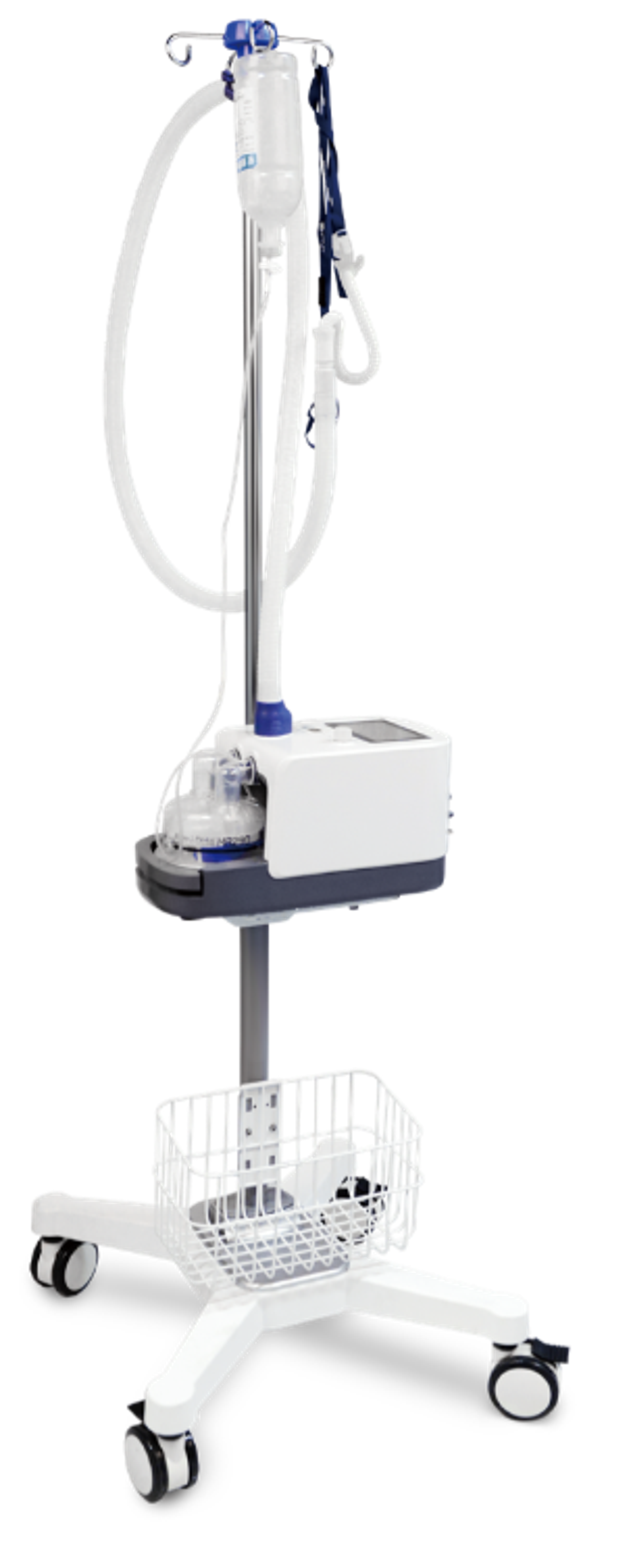

- Light and compact medical trolley eases intra-hospital transport
